ShapeLink_TrippLite_smallTo get the most value from Visio it’s important to understand how Visio shapes can be much more than clipart when properly designed.  The shapes can be programmed through their ShapeSheets to behave in ways that will automate and facilitate the drawing process.  One of the most powerful behaviors is the ability to link to external information via the Web through specially designed Hyperlinks.  In other words, we can give you the ability to simply click on the shape and gain access to a wealth of additional information.

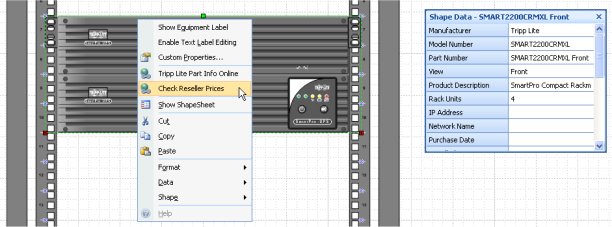

Here’s an example of how that works.  All of the shapes we develop for equipment manufacturers include Visimation’s ShapeLink™ technology.  ShapeLink is our automated method of inserting Hyperlinks that perform specific tasks.  For instance, with Tripp Lite products, each shape contains two ShapeLinks that you can access by right clicking on the shape as shown below:

Right click on the Visio shape to show ShapeLinks

Right click on the Visio shape to show ShapeLinks

One ShapeLink sends you directly to the product page for specifications, literature, etc.  The other ShapeLink sends you to a Reseller Price page where you can compare the prices at various resellers and click a “Buy” button to start the purchase process.  You can click on the images below to see the actual pages.

Tripp Lite product page

Tripp Lite product page

Tripp Lite pricing page

Tripp Lite pricing page

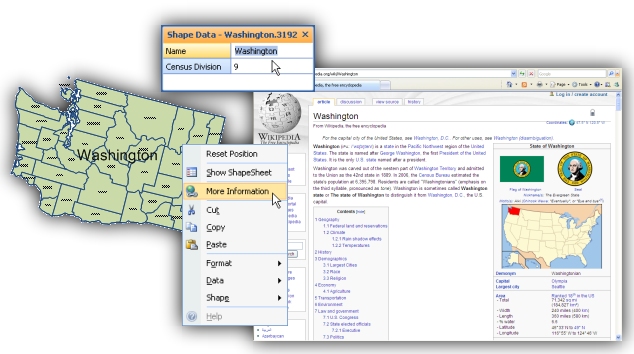

Another example of how useful ShapeLinks can be is in our MapShapes.  In the US States and Counties sets each state and county contains a right click ShapeLink to its Wikipedia information page.
MapShapes contain links to information about states and counties on Wikipedia

MapShapes contain links to information about states and counties on Wikipedia

In addition to the Visio stencils in our MapShapes, we include Enhanced Windows Metafiles (.emf) images for use in non-Visio applications.  However, .emf files cannot contain Hyperlinks although you can add them manually after you’ve inserted the image into a Word document or PowerPoint show for example.  Visio provides a richer and more powerful platform that enables us to deliver this capability with no effort on the part of the end user.
